● Dual 1/3 inch Progressive Scan CMOS
● H.265+、H.265、H.264+、H.264 Video Compression
● Supports backlight compensation, strong light suppression,3D digital noise reduction
● Flip，Mirror，and Rotation with 90 or 270 degree
● Good night-time performance with Smart Supplement Light
● Support Wi-Fi 6
● Line crossing, intrusion, region entrance, region exiting
● Alarm triggering by human and vehicle
● Supports voice intercom, voice broadcast, custom voice
● Support 34 languages on the browser
● Browser plugin-free: supports Edge, Chrome, Safari,Firefox and other mainstream browsers
● Supports image masking to protect private areas.
● Support ONVIF, can be connected to third-party NVR
● Support Mesh CMS functionality on the browser
● 12VDC or 5VDC
| Product model | S44-10 |
| SOC processor | SSC37X，built-in 1T computing power |
| Image Sensor | Dual 4M,1/3" Progressive Scan CMOS |
| Video | Main Stream 30FPS(2560*1440,2304*1296,1920*1080,1280*720) |
| main Sensor | Sub-Stream 30FPS(640*360,352*240) |
| sub-Sensor | Image effects: Automatic white balance, support for digital wide dynamic range, support for backlight compensation, adjustable brightness, contrast, and chroma parameters. |
| Network | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Protocols:TCP/UDP/IP/HTTP/RTSP/DHCP/P2P/ONVIF | |
| Motor | 2 channels STM driver 64 u-step driving |
| WIFI | IEEE802.11b/g/n/ax 2.4G |
| Smart Supplement Light | Infrared/white light control by electrical level or PWM |
| Adjustable brightness depend on Sensor or photoresistor | |
| TF | Yes |
| Reset Key | Yes |
| Network indicator light | Yes |
| Emc | GB/T17626.5，IEC61000-4-5 |
| Intelligent applications | Face Capture: Enables configurable detection zones. When a face is detected within the designated area, an alarm is triggered based on predefined conditions. |
| Face Recognition: Employs a local face database for recognition with a precision rate exceeding 99.9%. | |
| Pet Monitoring: detect and track pets, specifically cats and dogs. | |
| Traffic Surveillance: Detects vehicle congestion and provides traffic statistics. | |
| License Plate Recognition: Identifies and recognizes common license plates with an accuracy rate surpassing 99.8%. | |
| Infant Monitoring: Provides real-time monitoring of a baby's cries with event reporting. | |
| Noise Detection: Monitors high-decibel barking sounds in real-time and generates event reports. | |
| Obstruction Detection: Detects obstructions in specified areas of the image and reports obstruction events based on trigger conditions. | |
| Perimeter Security: Alerts upon human or vehicle intrusion into designated alarm zones. | |
| Boundary Crossing Detection: Identifies human movement with directional detection capabilities (A->B, B->A, and A<->B). | |
| Absentee Detection: Triggers alarms when personnel leave designated areas for a defined period, automatically ceasing upon their return. | |
| People Counting: Counts individuals entering and exiting, displaying real-time overlays on the image, and providing daily data. | |
| Voice Alerting: Links with voice broadcasting systems, allowing customizable recorded messages for alerts. | |
| Power | 12 VDC or 5VDC |
| Operating Conditions | -30℃~65℃ |

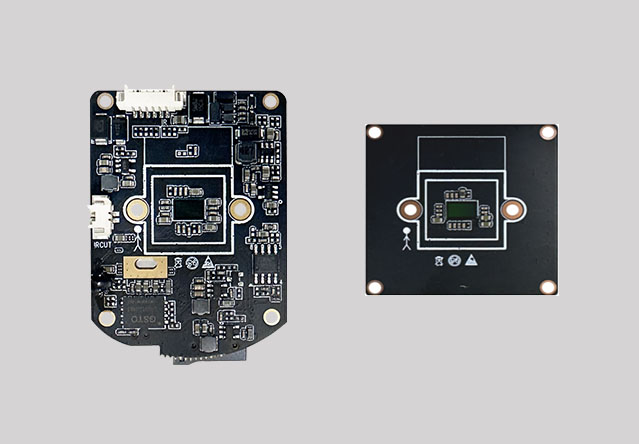

| Dimension | Main Board：38*52mm Sensor Board：38*38mm |
