● Low power consumption, All-Weather recording, quick startup, reduced false alarms. Capable of adapting to various environments,providing a more reliable 4G monitoring solution
● Full-Color images with ultra-Low illumination
● Supports AI human detection Wake-Up
● Offers performance mode and Energy-Saving mode, providing a flexible choice of multiple visual solutions.
● Supports dual motor drive and human tracking
● Supports solar/USB charging
● The battery meter provides more precise detection of battery level through built-in algorithms.
● Compatible with low power consumption during power outages, PIR triggering to enhance monitoring endurance in extreme environments.
● Charge pump conversion, supporting 8Ω2W @4.2V speaker output
● Supports PWM dimming with built-in led constant current drive
● Supports 512GB TF card
● power off with ultra-low power consumption for storage
● Supports Android & IOS
● Supports 512GB TF card
● power off with ultra-low power consumption for storage
● Supports Android & IOS

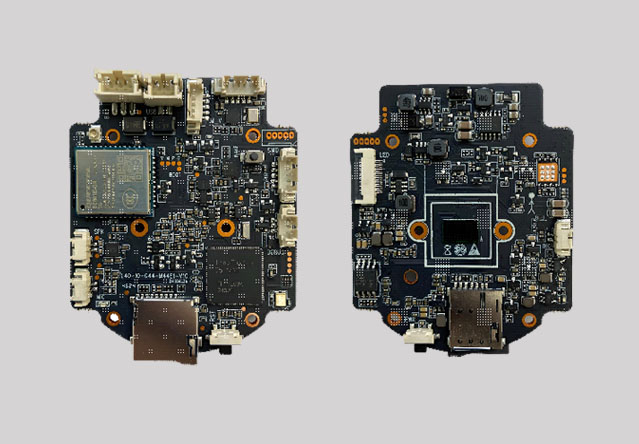

| Product model | L40-20 |
| SOC processor | SSC305DE,built-in 1.5T computing power |
| Image Sensor | 4M,1/1.8 inch progressive scan CMOS |
| Video | Main Stream 30FPS(2560*1440,2304*1296,1920*1080,1280*720) |
| Energy-saving mode:1/5 FPS/S Performance mode:1/2 FPS/S | |
| Image effects: Automatic white balance, support for digital wide dynamic range, support for backlight compensation, adjustable brightness, contrast, and chroma parameters. | |
| Network | 4G LTE Cat1，uplink 5Mbps,downlink 10Mbps |
| Supports 1 nano SIM and 1 eSIM | |
| Audio | 1 line in,1 Speaker（8Ω2W） |
| Motor | 2 channels STM driver 64 u-step driving |
| PIR | Yes,Supports multi-channel input |
| TF | Supports 512GB TF card |
| Power Key | Yes,Long press to power on/off,power off with ultra-low power consumption for storage |
| Reset Key | Yes,Long press to restore factory settings |
| Smart Supplement Light | Infrared/white light control by electrical level or PWM |
| Indicator | Supports charging indicator and network status indicator |
| Power level detection | Supports |
| charge | 5V/2A input |
| Emc | GB/T17626.5，IEC61000-4-5 |
| Protocols | TCP/TP,IPv4,DHCP,RTSP,P2P |
| APP | Android & IOS |
| Power | 3.7V Li-ion battery & 5V solar input |
| Operating Conditions | -30℃~65℃ |
| Dimension | 52*63mm |
