● 1/2.7" 8MP CMOS
● H.265+, H.265/H.264, dual stream
● Supports HDR, backlight compensation, highlight compensation, and 3D digital noise reduction
● Supports image flip，mirror，and rotation
● Supports dual light and smart dimming
● Supports external TF card, WiFi expandable to multiple channel
● Supports accurate human detection and vehicle detection; Applicable to scenarios including electronic fence, intrusion detection and on-duty detection etc.
● Supports privacy mask
● Supports voice intercom, voice broadcast, custom voice
● ONVIF Profile S，T，G，M
● Plug-in free for mainstream browsers
● Support Browser-based CMS

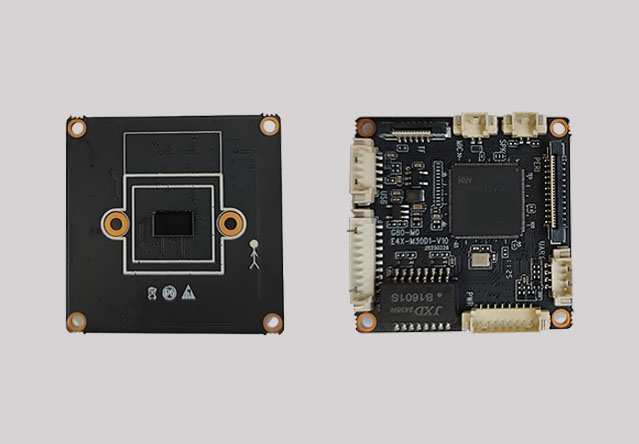

Model | E7880G-M0-G3 |
Main Chip | 37X，built-in 1T computing power |
Image Sensor | 8MP, 1/2.7" CMOS |
Image Output | Main stream 30FPS（3840*2160，2560*1440，2304*1296，1920*1080，1280*720） |
Sub stream 30FPS（640*360，352*240） | |
Image effects: Auto white balance, digital wide dynamic range, backlight compensation, and adjustable hue/brightness/contrast/saturation/sharpness | |
Audio | Standard: 1-channel Line In input, 1-channel built-in amplifier output (8Ω1W/4Ω2W) |
G.711 codec; supports two-way audio intercom, audio-video synchronization, and echo cancellation | |
Network | 1 x RJ45 10/100 M self-adaptive Ethernet port |
TF | 1× TF card slot, supports up to 512 GB |
WIFI | Supports Wi-Fi 4/6(On-Board Not Equipped), dual-band, 802.11b/g/n/ax |
Reset Key | Supports hardware reset |
Indicator | Supports network connection status LED |
IO Input/0utput | 1 x Input, 1 x Output, expandable to multiple channels |
Network Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,NTP,UPnP,SMTP,IGMP,802.1X,IPv4, IPv6,UDP,SSL/TLS,SNMP,ARP,WebSocket,ONVIF |
Standard | Human & vehicle classification (including non-motor vehicles), boundary detection, intrusion detection, region entering detection, region exiting detection and sound alarm linkage |
Optional | Face capture, face recognition, pet detection, lane violation control, license plate recognition, baby detection, abnormal sound detection, occlusion detection, electronic fence, off-post detection, people counting, custom voice alarm |
Power Supply | DC 12V |
Operating Conditions | -30℃～+65℃(-22°F to +149°F), ≤95%RH |
Dimension | Dual boards: 38 x 38 mm, board thickness 1.6 mm |
