● 1/1.8" 4MP Ultra Low-Light CMOS, daylight-like night vision
● Supports H.265/H.264/MJPEG
● Supports HDR, backlight compensation, highlight,compensation, and 3D digital noise reduction
● Supports image flip，mirror，and rotation
● Compliant with UVC 1.1 standard, driver-free
● Supports USB2.0 high-speed, low-speed and full-speed modes, compatible with EHCI
● Supports multi-system including Android, Linux and Windows
● Applicable to advertising players, video conferencing, high-definition shooting and other fields
Model | E0540U-G1 |
Main Chip | 30X，built-in 1.5T computing power |
Image Sensor | 4MP, 1/1.8" Ultra Low-Light CMOS |
Image Output | Stream 30FPS（2560*1440，1920*1080，1280*720，640*480） |
Image effects: Auto white balance, digital wide dynamic range, backlight compensation, and adjustable hue/brightness/contrast/saturation/sharpness | |
Power Supply | DC 5V |
Operating Conditions | -30℃～+65℃(-22°F to +149°F), ≤95%RH |

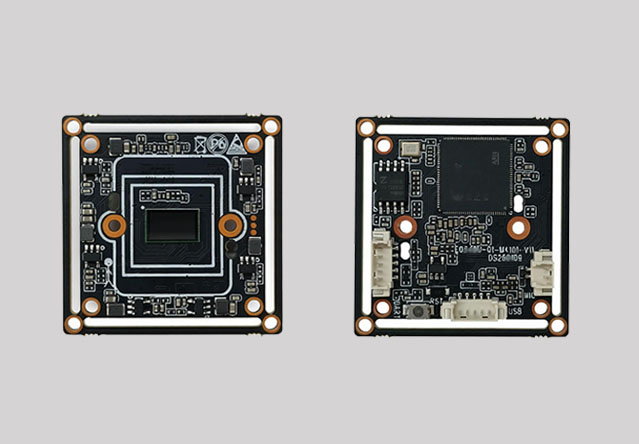

Dimension | Board: 38 x 38 mm or 32 x 32 mm, board thickness 1.6 mm |
