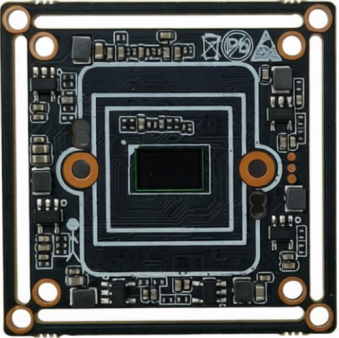

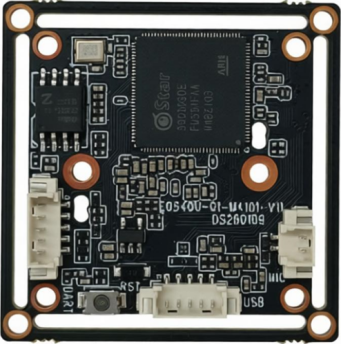

E0540U-G8
4MP USB Camera Module, built-in 1.5T AI computing power with ultra-low light night vision. Widely applied to advertising machines, video conferencing, high-definition shooting and other scenarios.
4MPH.2651.5T AI Computing PowerUVC Driver-Free
1/2.5" 4MP Ultra Low-Light CMOS, daylight-like night vision
Supports H.265/H.264/MJPEG/YUV
Supports HDR, backlight compensation, highlight compensation, and 3D digital noise reduction
Supports image flip，mirror，and rotation
Compliant with UVC 1.1 standard, driver-free
Supports USB2.0 high-speed, low-speed and full-speed modes, compatible with EHCI
Supports multi-system including Android, Linux and Windows
Applicable to advertising players, video conferencing, high-definition shooting and other fields
Specifications
Parameters
| Main Chip | 30X，built-in 1.5T computing power |
| Image Sensor | 4MP, 1/2.5" CMOS |
Image Output
| MJPG/H264/H265 | 3840*2160@30fps、2560*1440@30fps、1920*1080@120fps、1280*720@120fps、640*480@120fps |
| YUV | 3840*2160@1fps、2560*1440@3fps、1920*1080@5fps、1280*720@5fps、640*480@30fps |
| Image Effects | Auto white balance, digital wide dynamic range, backlight compensation, and adjustable hue/brightness/contrast/saturation/sharpness |
Power & Environment
| Power Supply | DC 5V |
| Operating Temperature | -30℃～+65℃(-22°F to +149°F) |
| Operating Humidity | ≤95%RH |
Dimensions
| Board Size | 38*38mm |
| Board Thickness | 1.6 mm |
